TYPE 37

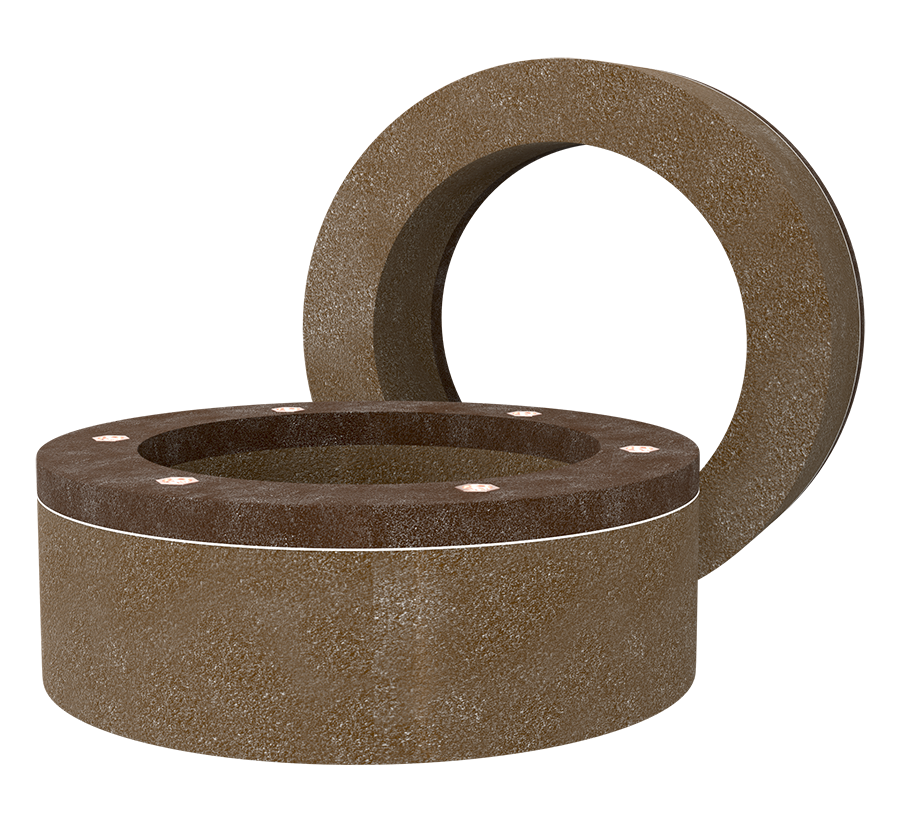

RING WHEELS WITH THREADED INSERTS
Ring wheels with threaded inserts TYPE 37 are intended for surface grinding on metal, concrete, terrazzo and ceramics. They work with the face surface. They have threaded inserts on their non-working face for clamping on the grinder. Used for grinding and sharpening bookbinding knives, circular saw tops, floors, industrial floors and terraces. Used on mobile grinders (e.g.: Schwamborn), wall grinders, face grinders (e.g.: Graupner), frame grinders (e.g.: Fickert).
ANDRE TYPE 37 grinding wheels belonging to the family of resin bonded abrasive tools are manufactured mainly on the basis of white aluminium oxide (99A) and black silicon carbide (98C). For special applications, ANDRE also offers other combinations of abrasive grains with excellent performance characteristics.
37 - 205x115-W30-99A46K6B-30-PP/37/746
Download
Parameters of the offered grinding wheels of the presented type
|
TYPE 37 |
||||||
|

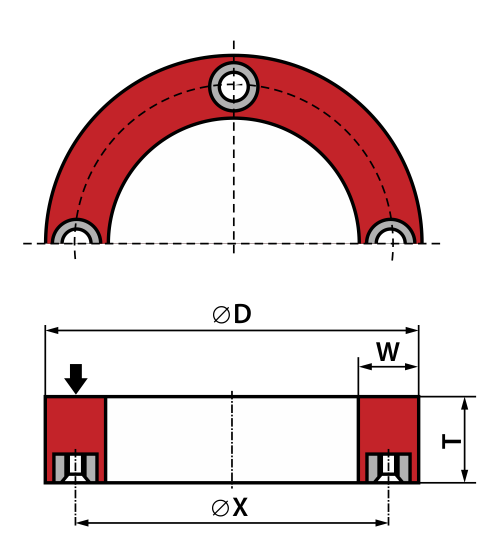

Dimensions [mm] |
Angle scale |
No. pic. |
||||
|
D |
T |
W |
X |
Height of threaded insert |
||
|
205 |
115 |
30 |
255 |
20 |
90° 4 x M10 |
PP/37/746 |
|
300 |
50 |
45 |
255 |
12 |
90° 4 x M10 |
PP/37/141 |
|
300 |
100 |
39 |
266,5 |
20 |
600 6 x M10 |
PP/37/172 |
|
150 |
||||||
|
400 |
63 |
30 |
370 |
16 |
600 6 x M12 |
PP/37/161 |
|
400 |
100 |
48 |
365 |
20 |
22030’ 16 x M12 |
PP/37/074 |
|
510 |
80 |
50 |
453 |
16 |
30° 12 x M12 |
PP/37/281 |
*) Other parameters (dimensions, profiles) available according to individual arrangements.
Note: The centering system should be defined, i.e. relative to the outer diameter, relative to the diameter of the hole, which implies dimensional tolerances.
