TYPE 41
REINFORCED FLAT CUTTING-OFF WHEELS
TYPE 41 reinforced wheels are a numerous and popular group of universal and special abrasive tools for cutting-off various materials. They are widely used at construction sites, steel construction plants, shipyards, mechanical engineering plants, steel mills, foundry and other industries, as well as in smaller workshops and tool shops. Depending on the size and requirements, they work with a variety of grinders - cutters: manual, stationary electric, pneumatic or petrol.
These grinding wheels have a special reinforcement that allows those with larger diameters to operate at higher peripheral speeds than TYPE 42 tools. TYPE 41 wheels up to a diameter 230 mm can only operate at speeds up to 80 [m/s], but from a diameter of 300 mm already at speeds of 80 and 100 [m/s].
For these grinding wheels, face grinding is not a permitted operation.
ANDRE TYPE 41 reinforced resin bonded cutting-off wheels are produced on the basis of a specially developed composition of abrasive grains in combination with a refined system of active fillers.


41 - D x T x H
Examples of labeling:
41 - 125x1,6x22,23-95A46RBF-80 METAL/INOX

Download


A line of professional solutions that meets the condition of a good efficient product at a good price. Dedicated definitely for professional applications.

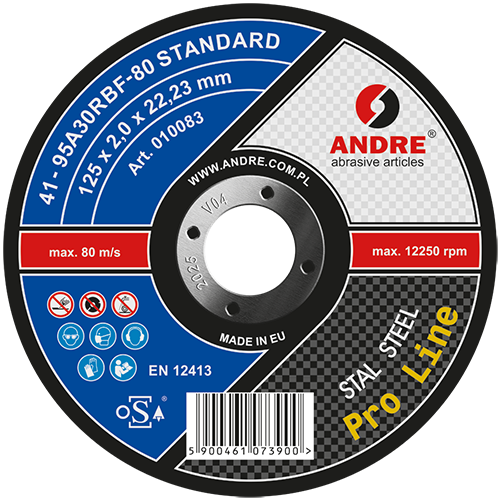

VERSION STANDARD
For cutting through steel, cast iron and cast steel materials; especially objects with larger solid cross-sectional areas: round, rectangular types of rods, flat bars, as well as sheet metal, casting overmolds.
STANDARD |
||||||
Dimensions [mm] |
Characteristics |
RPM |
||||
115 × 2,5 × 22,23 |
95A30RBF |
13300 |
||||
125 × 2,0 × 22,23 |
95A30RBF |
12250 |
||||
125 × 2,5 × 22,23 |
95A30RBF |
12250 |
||||
125 × 3,0 × 22,23 |
95A30RBF |
12250 |
||||
150 × 2,5 × 22,23 |
95A24RBF |
10200 |
||||
180 × 2,5 × 22,23 |
95A24RBF |
8500 |
||||
230 × 2,5 × 22,23 |
95A24RBF |
6650 |
||||
230 × 3,0 × 22,23 |
95A24RBF |
6650 |
||||
300 × 3,0 × 32 |
95A24RBF |
5100 |
||||
350 × 3,5 × 32 |
95A24RBF |
4400 |
||||
400 × 4,0 × 32 |
95A24RBF |
3850 |
||||
400 × 4,5 × 32 |
95A24BSKF |
3850 |
||||
500 × 5,5 × 51 |
95A24BSKF |
3100 |
||||
600 × 7,0 × 76 |
95A24RBF |
2550 |
*) Other parameters available according to individual arrangements.

VERSION EXTRA
Enhanced hardness. For cutting through steel, cast iron and cast steel materials; especially thin-walled objects: pipes, profiles, sheets, bars, sections.
EXTRA |
||||||
Dimensions [mm] |
Characteristics |
RPM |
||||
125 × 2,5 × 22,23 |
95A30TBF |
12250 |
||||
150 × 2,5 × 22,23 |
95A24TBF |
10200 |
||||
230 × 2,0 × 22,23 |
95A36TBF |
6650 |
||||
230 × 2,5 × 22,23 |
95A24TBF |
6650 |
||||
230 × 3,0 × 22,23 |
95A24TBF |
6650 |
||||
300 × 3,0 × 32 |
95A24TBF |
5100 |
||||
350 × 3,5 × 32 |
95A24TBF |
4400 |
||||
400 × 4,0 × 32 |
95A24TBF |
3850 |
||||
400 × 4,5 × 25,4 |
95A24TBSKF |
3850 |
*) Other parameters available according to individual arrangements.

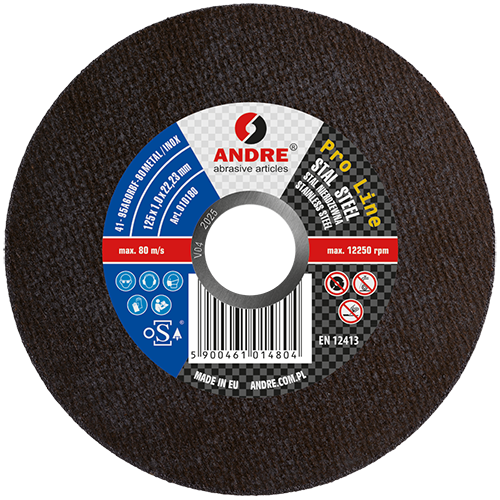

VERSION METAL/INOX
Thin grinding wheels for efficient, precision cutting of universal, structural, tool, stainless and acid-resistant steels. They are free of iron, sulfur and chlorine.
METAL/INOX |
||||||
Dimensions [mm] |
Characteristics |
RPM |
||||
115 × 1,0 × 22,23 |
95A60RBF |
13300 |
||||
115 × 1,6 × 22,23 |
95A46RBF |
13300 |
||||
125 × 1,0 × 22,23 |
95A60RBF |
12250 |
||||
125 × 1,6 × 22,23 |
95A46RBF |
12250 |
||||
125 × 2,0 × 22,23 |
95A30RBF |
12250 |
||||
150 × 1,5 × 22,23 |
95A60RBF |
10200 |
||||
150 × 1,7 × 22,23 |
95A46RBF |
10200 |
||||
180 × 2,0 × 22,23 |
95A36RBF |
8500 |
||||
230 × 2,0 × 22,23 |
95A36RBF |
6650 |
*) Other parameters available according to individual arrangements.

VERSION METAL/INOX SMALL LABEL
Thin grinding wheels with active side surfaces for efficient, precise cutting of universal, structural, tool, stainless and acid-resistant steels. They are characterized by increased cutting efficiency compared to standard thin grinding wheels They are free of iron, sulfur and chlorine.
METAL/INOX SMALL LABEL |
||||||
Dimensions [mm] |
Characteristics |
RPM |
||||
125 × 1,0 × 22,23 |
95A60RBF |
12250 |
*) Other parameters available according to individual arrangements.

VERSION INOX
For cutting stainless and acid-resistant steels. In a thin version for efficient precision cutting and in a typical version for general use. They are free of iron, sulfur and chlorine.
INOX |
||||||
Dimensions [mm] |
Characteristics |
RPM |
||||
115 × 1,0 × 22,23 |
95A60RBF |
13300 |
||||
125 × 1,0 × 22,23 |
95A60RBF |
12250 |
||||
125 × 1,6 × 22,23 |
95A46RBF |
12250 |
||||
125 × 2,5 × 22,23 |
95A30RBF |
12250 |
||||
125 × 3,0 × 22,23 |
95A30RBF |
12250 |
||||
180 × 2,0 × 22,23 |
95A46RBF |
8500 |
||||
230 × 2,0 × 22,23 |
95A36RBF |
6650 |
||||
230 × 2,5 × 22,23 |
95A30RBF |
6650 |
||||
300 × 3,0 × 32 |
95A30RBF |
5100 |
||||
350 × 3,5 × 32 |
95A30RBF |
4400 |
||||
400 × 4,0 × 32 |
95A24RBF |
3850 |
*) Other parameters available according to individual arrangements.

VERSION ALUMINIUM
For cutting through non-ferrous metals and their alloys such as aluminum, bronze, brass.
ALUMINIUM |
||||||
Dimensions [mm] |
Characteristics |
RPM |
||||
125 × 1,0 × 22,23 |
56A60RBF |
12250 |
||||
125 × 1,6 × 22,23 |
56A46RBF |
12250 |
||||
125 × 2,5 × 22,23 |
56A30RBF |
12250 |
*) Other parameters available according to individual arrangements.

VERSION RAIL
For cutting rail and tramway rails with high-powered diesel, electric and hydraulic grinders.
RAIL |
||||||
Dimensions [mm] |
Characteristics |
RPM |
||||
350 × 3,5 × 32 |
95A24RBF |
5500 |
||||
350 × 4,0 × 25,4 |
95A24RBF |
5500 |
||||
400 × 4,0 × 25,4 |
95A24RBF |
4800 |
||||
400 × 4,0 × 32 |
95A24RBF |
4800 |
*) Other parameters available according to individual arrangements.

VERSION PROFIL
Special grinding wheels for cutting through platform gratings. They can be used for similar work of cutting through profiled materials.
PROFIL |
||||||
Dimensions [mm] |
Characteristics |
RPM |
||||
400 × 4,0 × 32 |
95A24WBF |
4800 |
*) Other parameters available according to individual arrangements.

VERSION STONE
For cutting through concrete, reinforced concrete, terrazzo, natural and artificial stones, ceramic materials, as well as hard, brittle cast iron.
STONE |
||||||
Dimensions [mm] |
Characteristics |
RPM |
||||
115 × 1,0 × 22,23 |
98C60RBF |
13300 |
||||
115 × 2,5 × 22,23 |
98C30RBF |
13300 |
||||
125 × 1,0 × 22,23 |
98C60RBF |
12250 |
||||
125 × 2,5 × 22,23 |
98C30RBF |
12250 |
||||
230 × 3,0 × 22,23 |
98C24RBF |
6650 |
||||
300 × 3,0 × 32 |
98C24RBF |
5100 |
||||
350 × 3,5 × 32 |
98C24RBF |
4400 |
||||
400 × 4,0 × 32 |
98C24RBF |
3850 |
*) Other parameters available according to individual arrangements.
The presented abrasive tools ANDRE ABRASIVE ARTICLES have been manufactured based on knowledge and long-term experience of cooperation with customers.
